Beskrivning

Med Universal Audio Volt 4 Max får du ett flexibelt 12-in / 6-ut-ljudkort som ger dig det legendariska UA-soundet, inbyggd komprimering i realtid och kontrollrumsstyrning direkt på skrivbordet.. Med ultrahögupplöst 32-bit / 192 kHz ljudomvandling, dubbla Tone Shaping-preamps och inbyggd Max-komprimering (baserad på hårdvaruklassiker som 1176 och LA-2A) får du ett fylligt, färdigt studioljud direkt vid källan. Tack vare en tydlig Smart Display i färg, Auto-Gain, Clip Protection, högtalaromkoppling (A/B), dubbla hörlursutgångar, inbyggd Talkback-mikrofon, ADAT-ingång för 8 extra kanaler, MIDI I/O och ett mjukvarupaket med UAD-plug-ins och DAW:en LUNA, är Volt 4 Max det givna navet i din studio.

Key Benefits

Dual Tone Shaping Preamps:
Inject rich, analog harmonic character into your recordings with three switchable modes: Warmth, Focus, and Shine.

Max Real-Time Compression:
Capture radio-ready vocals, guitars, and bass using six push-button dynamics presets inspired by the legendary 1176 and LA-2A compressors.

Pristine 32-Bit Conversion:
Preserve every nuance of your tracking sessions with best-in-class 32-bit / 192 kHz resolution.

Expanded I/O & Digital Scalability:
Connect multi-instrument setups, external synths via MIDI, and expand your inputs by 8 channels via the ADAT optical port.

Control Room Features:
Easily switch between two pairs of studio monitors (A/B switching) and communicate effortlessly with talent using the built-in Talkback microphone.

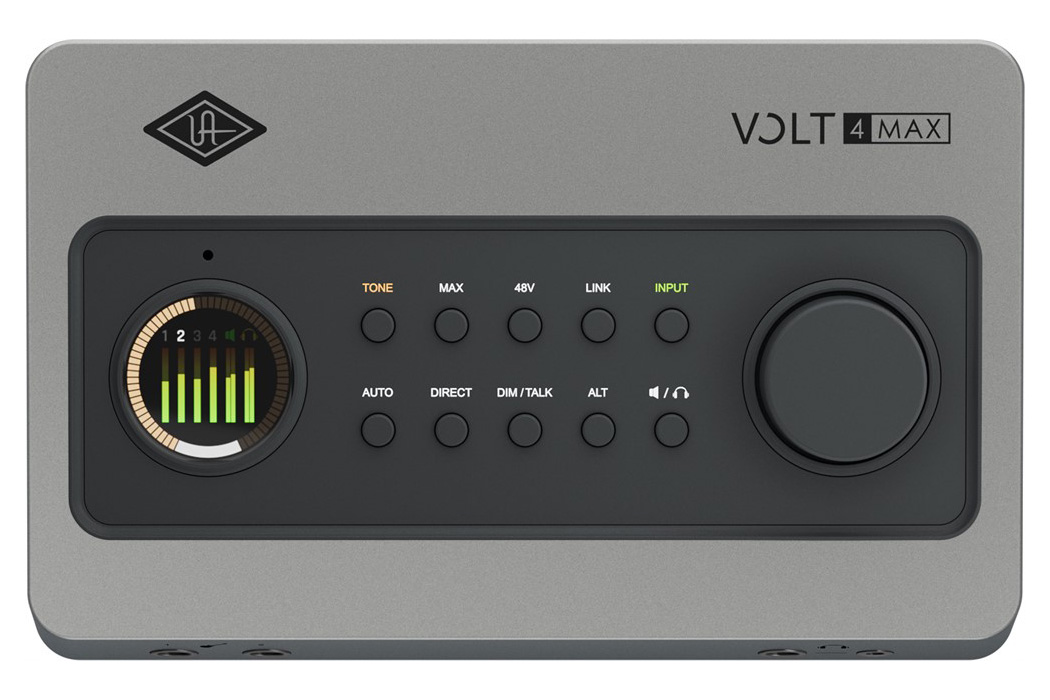

Full-Color Smart Display:
Gain immediate, crystal-clear visual feedback over input levels, settings, and gain reduction.

Auto-Gain & Clip Protection:
Automatically calculate ideal recording levels in seconds while shielding your takes from accidental digital clipping.

Complete Software Bundle:
Includes over 15 industry-standard UAD plug-ins and virtual instruments plus Universal Audio's LUNA Digital Audio Workstation.

Studio Sound at the Push of a Button

Traditional home recordings can easily sound thin and flat. Volt 4 Max solves this right at the source by putting 18 distinct analog character combinations directly at your fingertips. By pairing its three harmonic preamp profiles (Warmth, Focus, and Shine) with six Max compression modes tailored for vocals, acoustic guitars, and bass, you can capture polished, radio-ready sounds without latency or heavy CPU load.

Advanced Studio Control & Monitoring

Streamline your tracking and mixing workflow with professional control room features built directly into the interface. Volt 4 Max features dedicated speaker switching, allowing you to instantly audition mixes across multiple monitor setups. Dual high-output headphone channels and an integrated Talkback microphone make directing vocalists or collaborating with guest musicians effortless.

Uncompromised Expandability and Connectivity

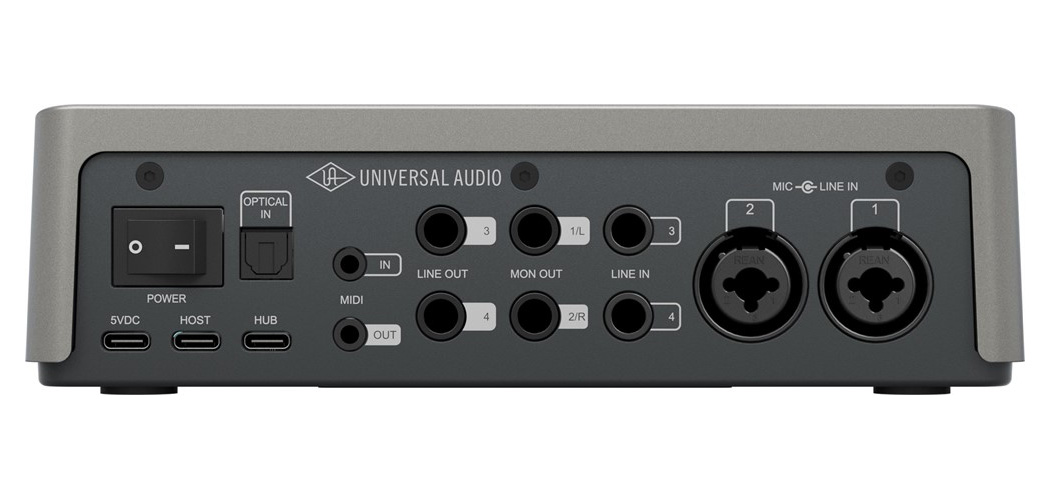

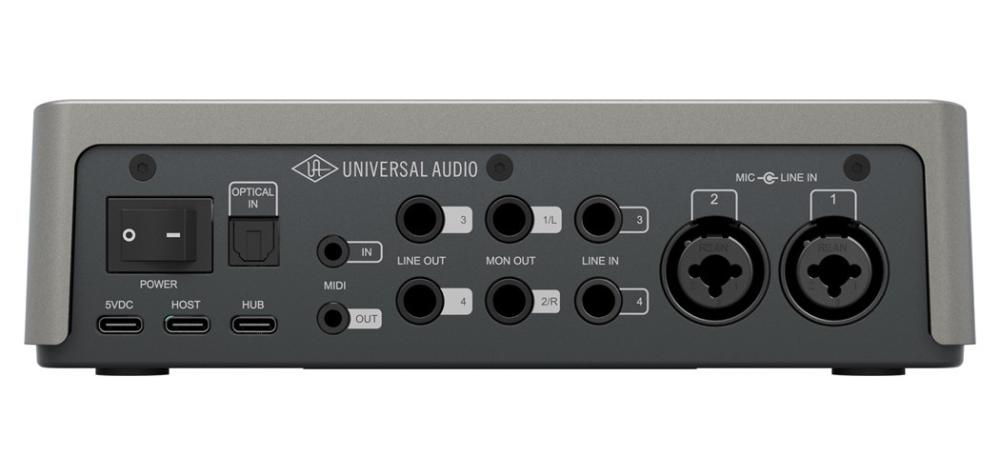

Volt 4 Max guarantees that your hardware will keep pace as your production needs expand. In addition to two front-panel combo mic/line/instrument inputs and additional line-level inputs, the optical ADAT connection allows you to connect an eight-channel mic preamp for multi-track drum tracking or ensemble recording. Onboard 5-pin MIDI connectors and an integrated USB hub bring your external synthesizers, drum machines, and MIDI controllers into one cohesive ecosystem.

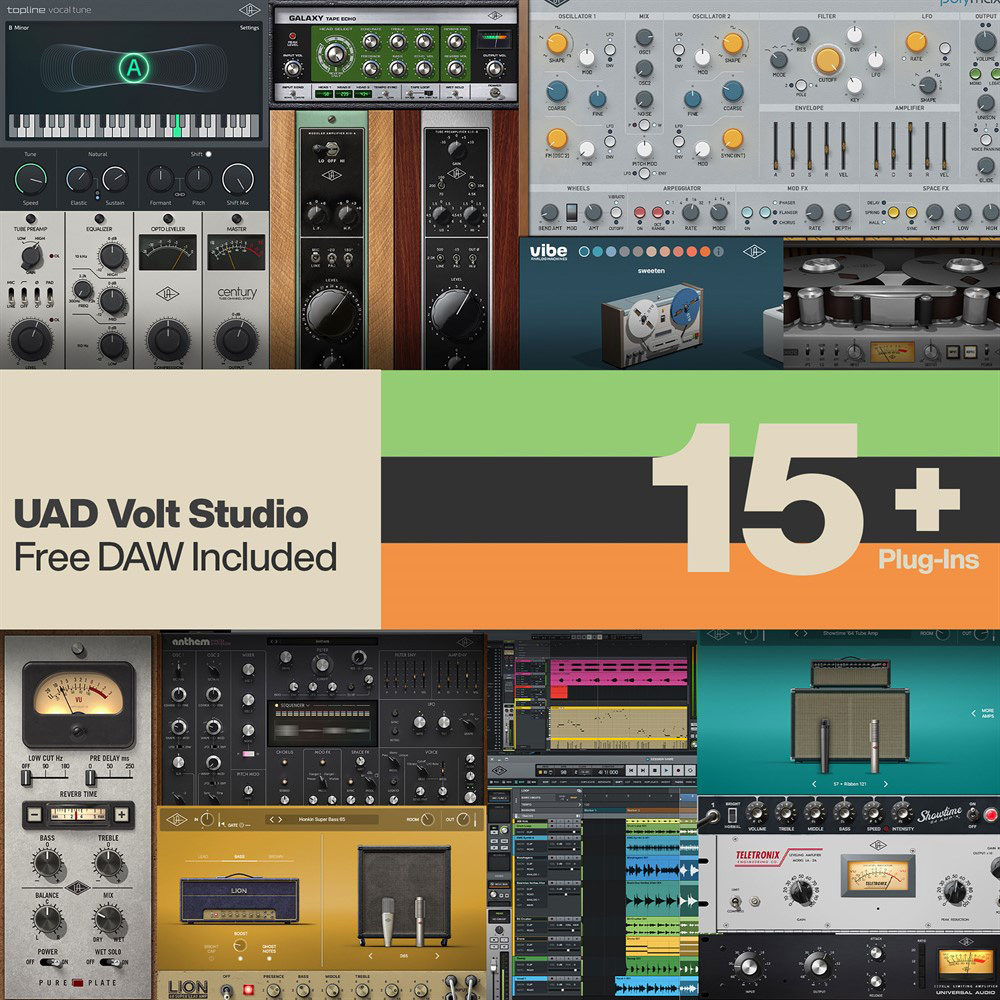

Complete Production Ecosystem

Every Volt 4 Max comes bundled with a curated suite of world-class UAD plug-ins, giving you instant access to classic EQs, legendary compressors, guitar amplifiers, and virtual instruments used on hit records worldwide. Additionally, you receive LUNA — Universal Audio's award-winning DAW that delivers authentic "big studio" analog sound and workflow right inside your computer.

Plug ins

Det här får du med vid köpet:

UAD Volt Studio Bundle

• LUNA Digital Audio Workstation
• Topline Vocal Tune
• UA 610 Tube Preamp & EQ Collection
• Century Tube Channel Strip
• Teletronix LA-2A Tube Compressor
• UA 1176 Classic FET Compressor
• Pure Plate Reverb
• Galaxy Tape Echo
• Oxide Tape Recorder
• Vibe Analog Machines
• PolyMAX Synth
• Anthem Analog Synth
• UAD Lion ’68 Super Lead Amp
• UAD Showtime ’64 Tube Amp

Additional Software

• Melodyne Essential by Celemony
• Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
• Includes Ampeg SVT-VR Classic, bx Tuner, bx Masterdesk Classic
• Virtual Drummer DEEP by UJAM
• Virtual Bassist DANDY by UJAM
• Splice INSTRUMENT
• Prisma - Producer Lab by UVI
• FL Studio Producer Edition (3 months free)

Specifikationer

• Simultaneous I/O: 12-in / 6-out
• A/D Conversion: 32-bit / 192 kHz
• Preamps: 2 x Mic/Line/Instrument (XLR/TRS Combo) with Tone Shaping, Harmonic Saturation, Max Compression, 60 dB Digitally-Controlled Gain & Switchable +48V Phantom Power per channel
• Instrument Inputs: 2 x 1/4" TS Hi-Z (via combo jacks, 116 dB Dynamic Range)
• Line Inputs: 4 x 1/4" TRS (2 via front combo jacks, 2 via rear panel; 119 dB Dynamic Range)
• Digital Inputs: ADAT optical (8 ch @ 48kHz, 4 ch @ 96kHz, 2 ch @ 192kHz) or S/PDIF optical (2 ch)
• Talkback: Built-in microphone
• Analog Outputs: 4 x 1/4" TRS Balanced Outputs (2 x Main/Alt Stereo - Monitor outs, Line 3-4 outs; DC coupled, 126 dB Dynamic Range)
• Headphone Outputs: 2 x Stereo Outputs (1/4" and 1/8" TRS, DC coupled, 45 mW @ 32Ω, shared cue mix)
• MIDI I/O: 1/8" TRS Mini-Jack In/Out (MIDI Type A)
• USB & Hub Expansion: USB 2.0 Host Port (Type-C), 1 x USB Hub Port for peripherals (5VDC @ 0.5A max), 1 x USB External Power Input Port (5VDC @ 1.5A min required, 3A supply included)
• Power: USB Bus-Powered (5.5W typical, 7.1W max) with rear panel On/Off switch
• Form Factor: Compact Desktop
• System & DAW Compatibility: macOS 12+, Windows 10 (64-bit)+, iOS/iPadOS 16+ (Class-compliant, supports all major DAWs)
