Beskrivning

Universal Audio Volt 4P Max är ett kraftfullt 12-in / 6-ut-ljudkort byggt för band, trummisar och producenter som vill spela in större sessioner med det äkta UA-soundet. Med fyra inbyggda Tone Shaping-preamps och analog Max-komprimering på alla kanaler (baserad på klassiker som 1176 och LA-2A) får du fylligt, färdigt studioljud direkt vid källan. Med ultrahögupplöst 32-bit / 192 kHz omvandling, en tydlig Smart Display i färg, Auto-Gain, Clip Protection, högtalaromkoppling (A/B), dubbla hörlursutgångar, inbyggd Talkback-mikrofon, ADAT-ingång för 8 extra kanaler och ett komplett mjukvarupaket med UAD-plug-ins och DAW:en LUNA, har du en hel studiorigg direkt på skrivbordet.

Key Benefits

Four Analog Tone Shaping Preamps:
Inject rich, analog harmonic depth into multi-mic setups with three switchable modes: Warmth, Focus, and Shine.

Max Real-Time Compression:
Record vocals, acoustic instruments, electric guitars, and drums with six push-button dynamics presets inspired by 1176 and LA-2A studio compressors.

Pristine 32-Bit Conversion:
Hear and capture every detail of your group performances with best-in-class 32-bit / 192 kHz audio conversion.

Multi-Channel I/O & ADAT Expansion:
Track full bands using four mic inputs, connect hardware synths via MIDI, and add up to 8 extra channels using the optical ADAT connection.

Control Room Features:
Audition mixes across two pairs of studio monitors via A/B speaker switching, and direct sessions easily with the built-in Talkback microphone.

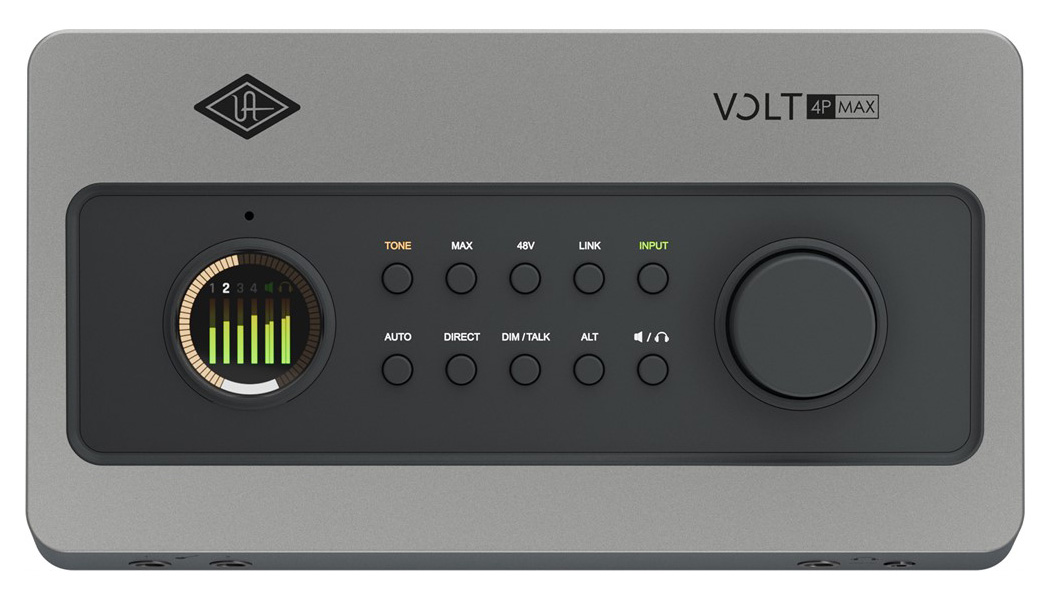

Full-Color Smart Display:
Gain immediate, clear visual metering over your gain reduction, input levels, and system settings across all channels.

Auto-Gain & Clip Protection:
Automatically set perfect gain levels across multiple inputs in seconds and shield your takes from unexpected digital overload.

Complete Software Bundle:
Includes over 15 industry-standard UAD plug-ins and virtual instruments plus Universal Audio's LUNA Digital Audio Workstation.

Big-Studio Tone for the Whole Band

Capturing multi-mic tracking sessions at home can often result in flat, uninspired takes. Volt 4P Max solves this right at the input stage by putting 18 distinct analog combinations across all four microphone channels. By combining four harmonic preamp modes (Warmth, Focus, and Shine) with six Max compression presets tailored for vocals, acoustic guitars, bass, and drums, you can effortlessly print punchy, radio-ready tracks without CPU latency or complex DAW plug-in routing.

Advanced Studio Control & Multi-User Monitoring

Manage live recording sessions with professional control room tools built directly into the top panel. Volt 4P Max features A/B speaker switching to quickly compare your mix on different monitor sets, while two independent high-power headphone outputs ensure both the engineer and performer get crystal-clear cue mixes. The integrated Talkback microphone allows seamless communication between the control room and talent.

Uncompromised Scalability and Routing

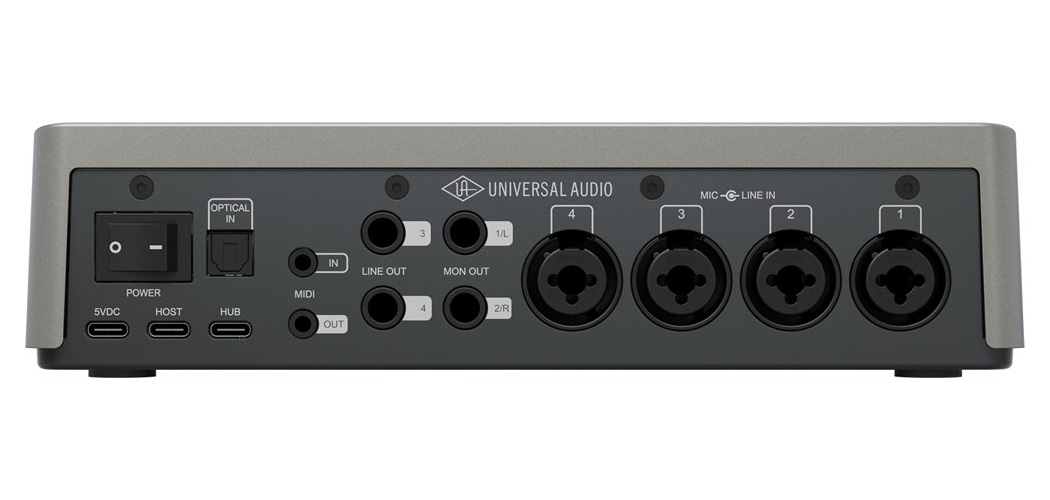

Volt 4P Max is built so your hardware never limits your creative ambition. Beyond its four combination XLR/TRS inputs and dedicated Hi-Z instrument jacks, the optical ADAT input allows you to connect an eight-channel mic preamp to record full drum kits or large ensembles. Integ

Plug ins

Det här får du med vid köpet:

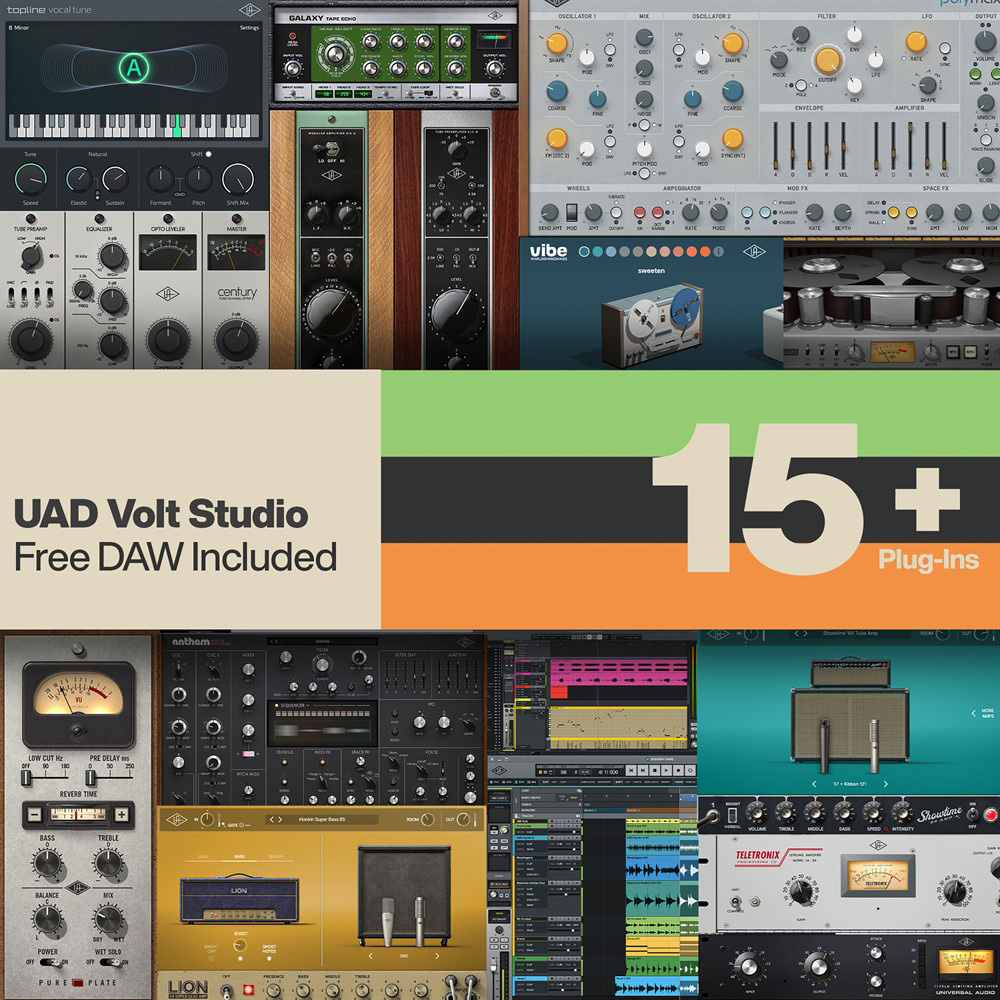

UAD Volt Studio Bundle

• LUNA Digital Audio Workstation
• Topline Vocal Tune
• UA 610 Tube Preamp & EQ Collection
• Century Tube Channel Strip
• Teletronix LA-2A Tube Compressor
• UA 1176 Classic FET Compressor
• Pure Plate Reverb
• Galaxy Tape Echo
• Oxide Tape Recorder
• Vibe Analog Machines
• PolyMAX Synth
• Anthem Analog Synth
• UAD Lion ’68 Super Lead Amp
• UAD Showtime ’64 Tube Amp

Additional Software

• Melodyne Essential by Celemony
• Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
• Includes Ampeg SVT-VR Classic, bx Tuner, bx Masterdesk Classic
• Virtual Drummer DEEP by UJAM
• Virtual Bassist DANDY by UJAM
• Splice INSTRUMENT
• Prisma - Producer Lab by UVI
• FL Studio Producer Edition (3 months free)

Specifikationer

• Simultaneous I/O: 12-in / 6-out
• A/D Conversion: 32-bit / 192 kHz
• Preamps: 4 x Mic/Line/Instrument (XLR/TRS Combo) with Tone Shaping, Harmonic Saturation, Max Compression, 60 dB Digitally-Controlled Gain & Switchable +48V Phantom Power per channel
• Instrument Inputs: 2 x 1/4" TS Hi-Z (via combo jacks, 116 dB Dynamic Range)
• Line Inputs: 4 x 1/4" TRS (via combo jacks, 119 dB Dynamic Range)
• Digital Inputs: ADAT optical (8 ch @ 48kHz, 4 ch @ 96kHz, 2 ch @ 192kHz) or S/PDIF optical (2 ch)
• Talkback: Built-in microphone
• Analog Outputs: 4 x 1/4" TRS Balanced Outputs (2 x Main/Alt Stereo - Monitor outs, Line 3-4 outs; DC coupled, 126 dB Dynamic Range)
• Headphone Outputs: 2 x Stereo Outputs (1/4" and 1/8" TRS, DC coupled, 45 mW @ 32Ω, shared cue mix)
• MIDI I/O: 1/8" TRS Mini-Jack In/Out (MIDI Type A)
• USB & Hub Expansion: USB 2.0 Host Port (Type-C), 1 x USB Hub Port for peripherals (5VDC @ 0.5A max), 1 x USB External Power Input Port (5VDC @ 2A min required, 3A supply included)
• Power: USB Bus-Powered (6.0W typical, 9.1W max) with rear panel On/Off switch
• Form Factor: Compact Desktop
• System & DAW Compatibility: macOS 12+, Windows 10 (64-bit)+, iOS/iPadOS 16+ (Class-compliant, supports all major DAWs)
