Description

It All Starts With The Microphone
The importance of a good microphone cannot be overstated; but unfortunately, finding a truly great microphone within a budget has always been challenging for aspiring engineers. There are very usable microphones available for those on a budget; but top shelf, classic studio microphones are financially out of reach for most people. We applied all that we know about bridging this barrier into crafting a microphone that reaches the level of quality and sonics mostly found only in top shelf products, yet sells for a price that is down to earth.

Quality Components Make A Better Mic
The WA-87 features all discrete, premium components such as Fairchild FETs, tantalum, polystyrene, and WIMA film capacitors, and is rounded off with a CineMag USA output transformer.
The WA-87 proudly uses our own Warm Audio WA-87-B-50V custom capsule reproduction stylized after the classic K87 dual backplate/dual diaphragm capsule found in the early ‘87 microphones.

Specifications

• Large Condenser Studio Microphone Based On The Classic "87-Style" Circuit
• Polar Patterns: Cardioid, Figure Of Eight, And Omnidirectional
• WA-87-B-50V Capsule. Reproduction of Classic Dual Backplate (Four Wire Termination) K87 Capsule
• Minus 10db Pad
• CineMag USA Output Transformer
• Frequency Response: 20Hz - 20 kHz
• SPL: .5% THD @ 125db (Without Pad), 132db
• Diaphragm: 6 Micron Thickness, 1 Inch Diameter, Gold Sputtered Membrane, Nos Mylar (Pet Film)
• Output: 150 Ohms, 24K Gold Plated, 3 Pin XLR
• High Pass Filter: 80Hz
• Noise: -117db

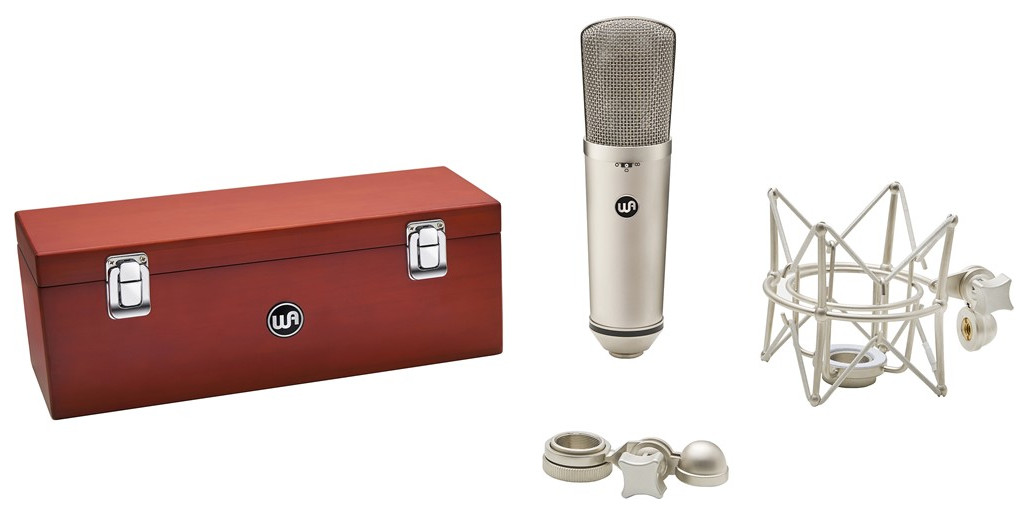

• Microphone Includes Shock Mount, Hard Mount And Wood Box
• Color: Nickel
